Using Report Tables in Diagram
Include customized wire lists in your diagrams using the Drawing Report table functionality. The following example shows how to enter repeat regions in a table to produce a from-to wirelist for a simple connection:

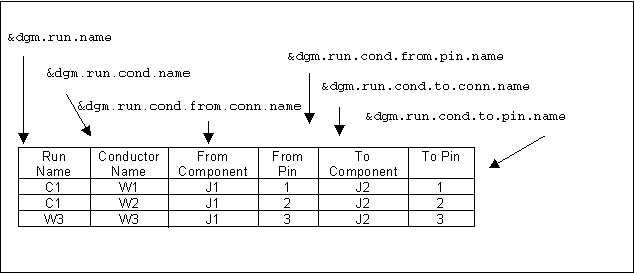

Use the table editor to enter repeat regions as shown. The table shows the output of each repeat region:
A cable listed in the report table shows From-To information only if all cable conductors at one or both ends of the cable go to the same ref_des.
• If the conductors go to different connectors, the report table entry for that end is "-", to show that the value has no meaning.
• If the conductors go to the same connector, the connector information is shown appropriately.
For more information on report tables search the Drawing area of the Help Center.
